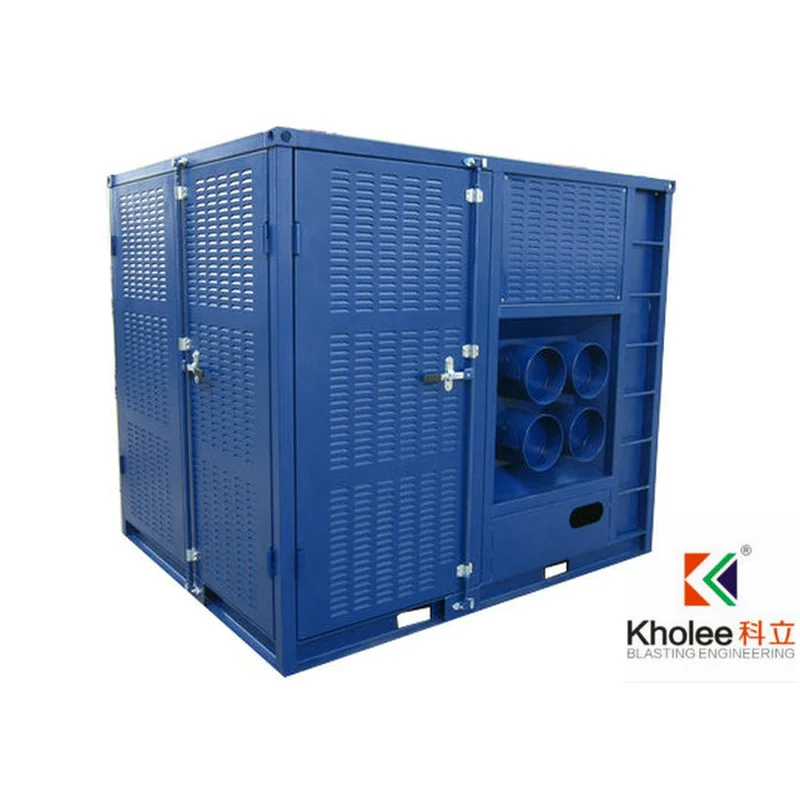

KL-LFC12000 Portable Spot Cooler for Shipbuilding & Shipyard

KL-LFC12000 Portable Spot Cooler

Place Of Origin: China

Working Type: Compressor Refrigerating

Usage: Control Temp

Application: Cooled & Fresh Air Supplied

Portable Spot Cooler is engineered for use in equatorial and tropical climate conditions or in Summer of temperate regions. It is designed to supply cooled & fresh air for workers in places where are hot or full of toxic / hazardous gas, widely used in shipbuilding and shipyard, marine.

Description

Portable Spot Cooler from Kholee Blast is engineered specially for use in equatorial and tropical climate conditions or in Summer of temperate regions.

The system has the following usages:

- To reduce temperature of a chamber as to satisfy technical requirements and improves working efficiency

- An effective ventilation method to reduce toxic/hazardous gas for prevention of accident occurrences.

- Its cooling effect improves working environment, and enhances working productivity.

Portable Spot Cooler

Model

KL-LFC12000

Process Airflow (m3/hr)

12000

Compressor Power (kw)

23

Process Air Fan (kw)

11

Refrigerating Power (kw)

92

Refrigerant

R22 FREON

Evaporator

Copper Tube + Aluminum Fins with Stainless Steel Casing

Condenser

Copper Tube + Aluminum Fins with Stainless Steel Casing

Outlet connection (mm)

Φ250×4

Total Power (kw)

37

Equipment Size (mm)

2200×1400×2260

Weight (T)

≤2.0

Machine Structure

Movable Containerized

Temperature Control Type

Temperature Display + Control, PLC + Manual

Inlet Air Condition

Temperature: 20~40°C

Outlet Air Condition

≤25°C

Air Discharge Pressure

≥1000Pa

Note:

1. Power supply: 3-phase plus earth 380V/ 415V / 50 Hz

2. Refrigerant: R22 / FREON

3. Cooling Media: Air

4. Temperature Reduction: 8~15°C

5. We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.
