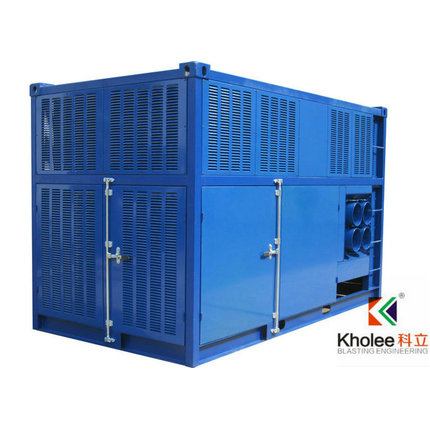

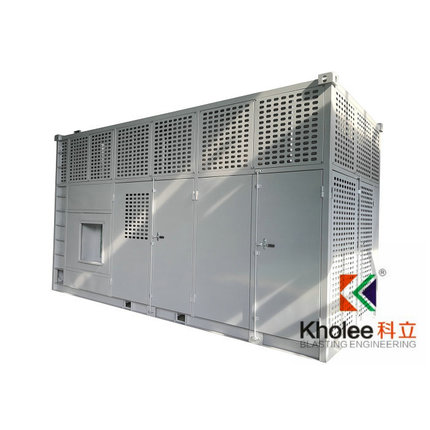

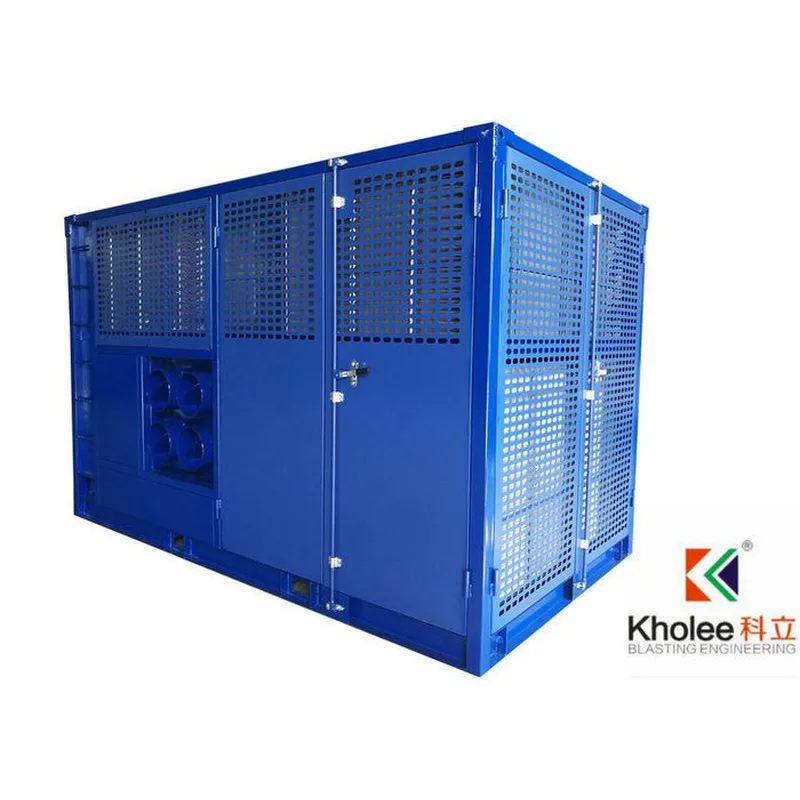

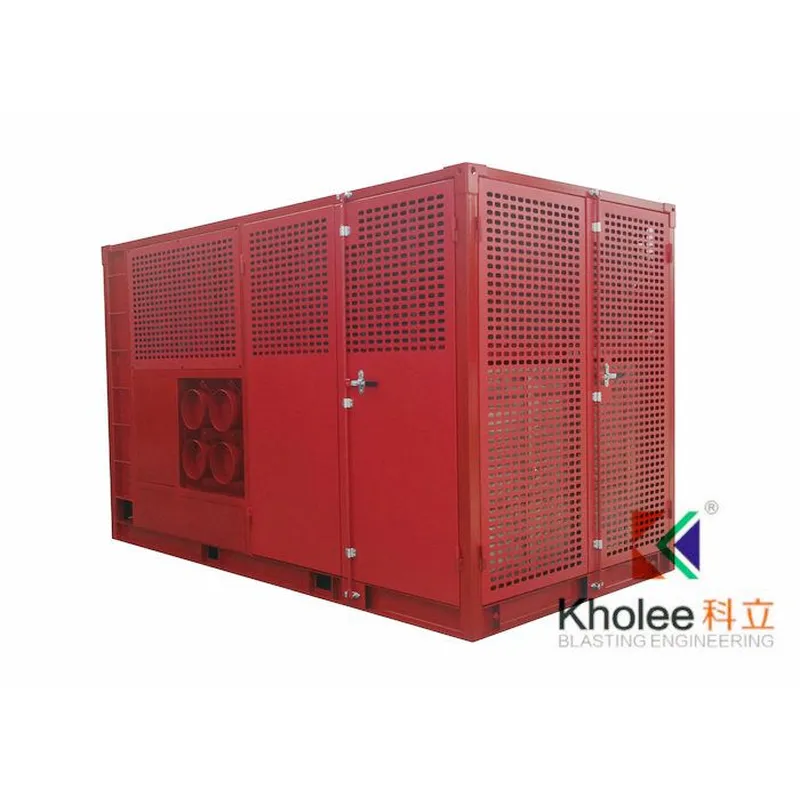

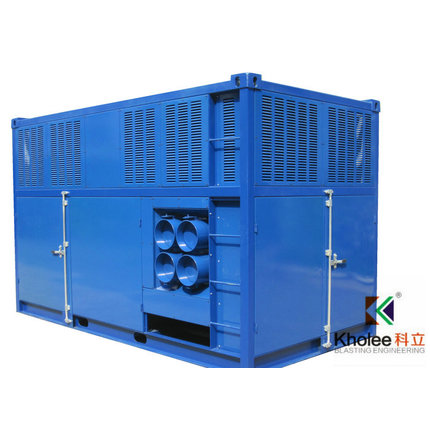

Air Cooled Dehumidifier for Blasting and Painting

Place Of Origin: China

Working Type: Compressor Refrigerating

Usage: Control Temp & RH

Application: Blasting Painting

The Air-Cooled Dehumidifiers are used for drying air of up to 95% relative humidity (RH) with temperatures from +15ºC to +40ºC. It is widely used for blasting painting application in the area of Southeast Asia, South America with tropic and subtropic climate.

Description

The Air Cooled Dehumidifiers are used for drying air of up to 95% relative humidity (RH) with temperatures from +15ºC to +40ºC. It is widely used in the area of Southeast Asia, South America with tropic and subtropic climate.

The applications are numerous and wide spread. Below are some examples:

- Surface treatment during internal blasting and painting of tanks

- Shipping industry, both for permanent and temporary applications

- Controlling humidity levels in production processes

- Protection of equipment sensitive to corrosion

- Climatic improvements in damp areas

Air cooled dehumidifier is delivered as a complete unit with fans, filters, condenser, evaporator, compressor and controls. The dehumidifier is ready for site installation and connection to standard-size ducting. Each dehumidifier will be custom designed according to the local conditions and the needs of the customer.

AIR COOLED DEHUMIDIFIER FOR BLASTING & PAINTING

Model

KL-LFZ6000

KL-LFZ9000

KL-LFZ12000

KL-LFZ15000

KL-LFZ18000

KL-LFZ24000

Process Airflow (m3/hr)

6000

9000

12000

15000

18000

24000

Compressor Power (kw)

38

45

60

75

90

60×2

Process Air Fan (kw)

7.5

11

15

18.5

22

30

Reheating Power (kw)

27

36

45

54

80

90

Outlet Connection (mm)

Φ280×2

Φ250×4

Φ280×4

Φ300×4

Φ250×6

Φ300×6

Total Power (kw)

76.9

100

131

169.5

214

260

Equipment Size (mm)

3400×2000

×2450

3600×2050

×2500

3800×2100

×2550

4300×2200

×2800

4800×2200

×2800

5500×2200

×2800

Weight (T)

3.2

3.5

3.8

4.2

4.5

6

Machine Structure

Movable Containerized

Temperature Control

High sensitive temperature sensor + PLC control + Touch Screen Display

Condenser

Copper Tube + Aluminum Fins with Stainless Steel Casing

Or Copper Tube + Copper Fins with Stainless Steel Casing

Evaporator

Copper Tube + Aluminum Fins with Stainless Steel Casing

Or Copper Tube + Copper Fins with Stainless Steel Casing

Air Intake Condition

Temperature: 15~40°CRH≤95%

Air Outlet Condition

Temperature: 25±3°CRH≤45%

Air Outlet Pressure

≥2000~2500Pa

Electrical Control

100% refrigeration + 100% Heating

Note (All Models):

1. Power Supply: 3-phase plus earth 380V/ 415V / 50 Hz, 380V/440V/60Hz

2. Refrigerant: R22, other refrigerant gas for optional such as R134A, R407C.

3. Cooling Step Control: 25%~50%~75%~100%

4. Cooling Media: Air

5. Discharge Condition: 25 ± 3 °C/RH below 45%

6. We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.

DIMENSION OF AIR COOLED DEHUMIDIFIER

Model

 KL-LFZ6000

 KL-LFZ9000

 KL-LFZ12000

 KL-LFZ15000

 KL-LFZ18000

 KL-LFZ24000

Length A (mm)

3400

3600

3800

4300

4800

5500

Width B (mm)

2000

2050

2100

2200

2200

2200

Height C (mm)

2450

2500

2550

2800

2800

2800

Forklift D (mm)

1400

1400

1400

1400

1400

1400










Dehumidifier Outlook Drawing.jpg
