The air cooled dehumidifiers with desiccant rotors are used for drying air of up to 95% relative humidity (RH) with temperatures -20ºC to +45ºC. It is widely used in the area of Far East Asia, Russia, West Europe, North America with temperate climate.
The applications are numerous and wide spread. Below are some examples:
- Surface treatment during internal blasting and painting of tanks
- Shipping industry, both for permanent and temporary applications
- Controlling humidity levels in production processes
- Protection of equipment sensitive to corrosion
- Climatic improvements in damp areas

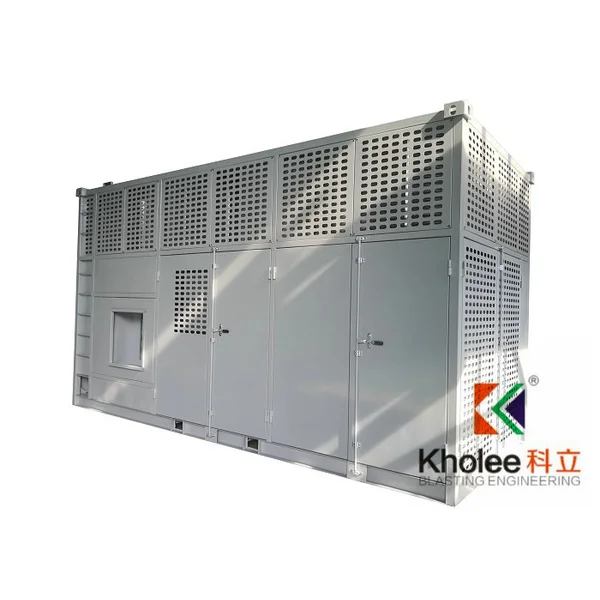

Air cooled dehumidifier with desiccant rotor is delivered as a complete unit with fans, filters, condenser, evaporator, compressor, desiccant rotor, regenerating heating and controls. The dehumidifier is ready for site installation and connection to standard-size ducting. Each dehumidifier will be custom designed according to the local conditions and the needs of the customer.
| AIR COOLED DEHUMIDIFIER WITH DESICCANT ROTOR FOR ALL CLIMATE |
Model | KL-LFD6000 | KL-LFD9000 | KL-LFD12000 |
KL-LFD15000 | KL-LFD18000 | KL-LFD24000 |
Process Airflow (m3/hr) | 6000 | 9000 | 12000 | 15000 | 18000 | 24000 |
Compressor Power (kw) | 38 | 45 | 60 | 75 | 90 | 60×2 |
Process Air Fan (kw) | 7.5 | 11
| 15 | 18.5 | 22 | 30 |
Reheating Power (kw) | 50 | 75 | 100 | 125 | 150 | 200 |
Regenerating Heating Power (kw) | 36 | 54 | 72 | 90 | 108 | 144 |
| Desiccant Rotor (mm) | Φ550×200 | Φ770×200 | Φ965×200 | Φ1,220×200 | Φ1,220×200 | Φ1,525×200 |
Outlet Connection (mm) | Φ280×2 | Φ250×4 | Φ280×4 | Φ300×4 | Φ250×6 | Φ300×6 |
Total Power (kw) | 133 | 195 |
260 | 323 | 395 | 260 |
| Equipment Size (mm) |
4,100×2,000 ×2,150 |
4,500×2,200 ×2,500 |
4,850×2,200 ×2,700 |
5,500×2,300 ×2,800 |
5,800×2,300 ×2,800 |
6,000×2,400 ×3,000 |
Weight (T) | ≤4.5 | ≤5.2 | ≤6.0 | ≤7.0 | ≤8.0 | ≤9.0 |

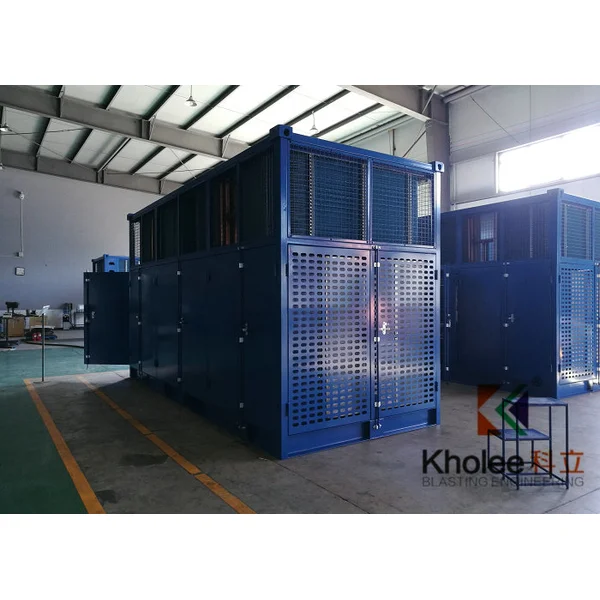

Machine Structure | Movable Containerized |
| Refrigerating Gas | R22 |
Temperature Control | High sensitive temperature sensor + PLC control + Touch Screen Display |
Condenser
| Copper Tube + Aluminum Fins with Stainless Steel Casing Or Copper Tube + Copper Fins with Stainless Steel Casing |
| Evaporator | Copper Tube + Aluminum Fins with Stainless Steel Casing Or Copper Tube + Copper Fins with Stainless Steel Casing |
| Air Intake Condition | Temperature: -20~40°C，RH≤95% |
| Air Outlet Condition | Temperature: 25±3°C，RH≤45% |
| Air Outlet Pressure | ≥2000~2500Pa |
| Electrical Control |
100% refrigeration / 100% Desiccant Rotor / Refrigeration + Desiccant Rotor /100% Heating |
Note (All Models):
1. Power Supply: 3-phase plus earth 380V/ 415V / 50 Hz, 380V/440V/60Hz
2. Refrigerant: R22, other refrigerant gas for optional such as R134A, R407C.
3. Cooling Step Control: 25%~50%~75%~100%
4. Cooling Media: Air
5. Discharge Condition: 25 ± 3°C/RH below 45%
6. We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.
