KLH1018-8 roller conveyor shot blasting machine is used to clean H beam, box beam, big steel structure, pipe, steel plate etc. in PEB structure manufacturing workshop. It adopts advanced blasting turbine to do blasting to all the surface of steel and remove rust, oxide layers, welding slag. After blasting, it gets clean surface Sa2.5 with certain roughness which improves the paint film adhesion, anti-fatigue and anti-corrosion, prolong the service life of steel. It is widely used in the industry of steel structure, ship building, engineering machinery & bridge construction etc.

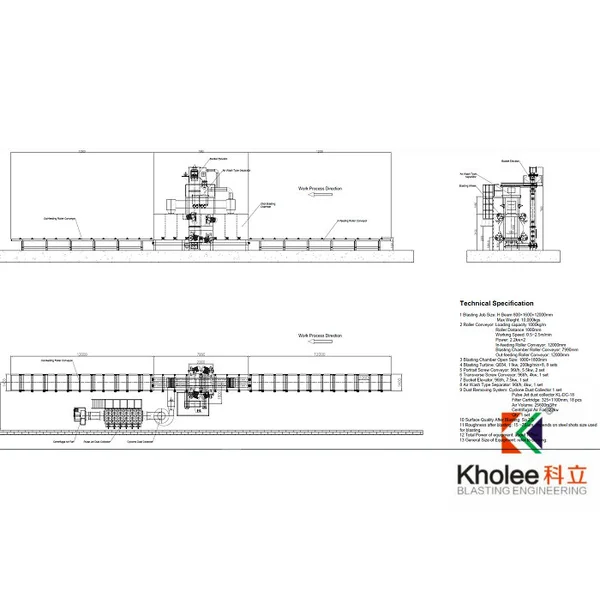

The equipment is comprised of in-feeding roller conveyor, shot blasting chamber, blasting turbine, shots recycle system, dust removing system, out-feeding roller conveyor and electrical control system etc.
KLH1018-8 roller conveyor shot blasting machine adopts no foundation pit design. It will save a lot of investment in foundation pit construction. The investment for shot blasting machine includes equipment value and foundation pit construction cost. If the equipment adopts no pit design, it will save investment for foundation construction.
Size of Blasting Jobs Max Size | H Beam / PEB Structures
| 1,000×1,800×15,000mm |
Weight | 10,000kgs |
Blasting Chamber | Entry & Exit Open Size | 1,200×2,000mm |
Chamber Length | 7,990mm |
Main blasting chamber is protected By Cr13 Wearing Resistance Plate Liner service life: opposite blast wheel ≥ 4,000hrs Other Parts ≥ 10,000hrs |
Working Speed | 0.5~2.5 m/min |
Blasting Wheel - Direct Coupling | Model | KLQ350D |
Quantity | 8 sets |
Shot blasting capacity | 200 kg/min ×8 |
Power | 11kw × 8 |
In-feeding Roller Conveyor | Loading Capacity | 1000 kg/m |
Space Between Rollers | 1000mm |
Length | 15,000m |
Power | 3 kw |
Out-feeding Roller Conveyor | Loading Capacity | 1000 kg/m |
Space Between Rollers | 1000mm |
Length | 15,000m |
Power | 3 kw |
Portrait Screw Conveyor - With checking device | Delivery capacity | 96 t/h |
Power | 5.5kw |
Transverse Screw Conveyor - With checking device | Delivery capacity | 96 t/h |
Power | 4kw |
Bucket Elevator | Lifting capacity | 96 t/h |
Power | 7.5 kw |
Shots-Dust Separator Air Wash Type - With checking device | Separating capacity | 96 t/h |
Air speed in separating area | 4~5 m/s |
Power | 4 kw |
Cyclone Dust Collector | Diameter | Φ1260mm |
Qty | 1 set |
Pulse Jet Type Dust Collector - With Fast Replacement Technology | Model | KL-DC-18 |
Cartridge Filter | Φ325 × 1100mm |
Cartridge Filter Quantity | 18 pcs |
Dust Emission Density | ≤80 mg/m3 |
Air Volume | 25,600 m3/hr |
Centrifugal Air Fan | 22kw |
Electrical Control System | Voltage/Frequency | 380V/50Hz/3Ph |
Operation Type | Manual + PLC control |
Equipped with China Famous Brand Elements Such as CHINT Mitsubishi | PLC, breaker, contactor, time relay, thermal relay, button, switch etc. Interlock safety control |
Total Power | About 137kw |
Overall Size of Machine | About L 37,990× W 6,000× H7,500mm |
