KL-PSF120704WF Blast Room with Single Waffle Floor Abrasive Recovery System

Place Of Origin: China

Working Type: Air Blasting

Blasting Abrasives: Steel Shots, Girts & Garnets

Usage: Remove Rust, Oxide Layers, Painting Film etc

Blasting Room Size: 12×7×4m

Operator: 2 Blasting Men

The blast room & waffle floor abrasive recovery system is comprised of room & wall protective liner, blasting system, waffle floor, air ducting, reclaimer, hopper, high pressure air fan and dust collector, ventilation and dust collector for blasting room, lighting system, electrical control system etc. Blast room with pneumatic recovery system is an economical alternative to traditional full floor blast room.

Description

Blasting room equipment is used in a wide variety of industries that require surface preparation prior to the application of a protective coating. The surface of the work-piece is cleaned by a mixture of abrasive and high pressure compressed air being directed on to the work piece by blast nozzle.

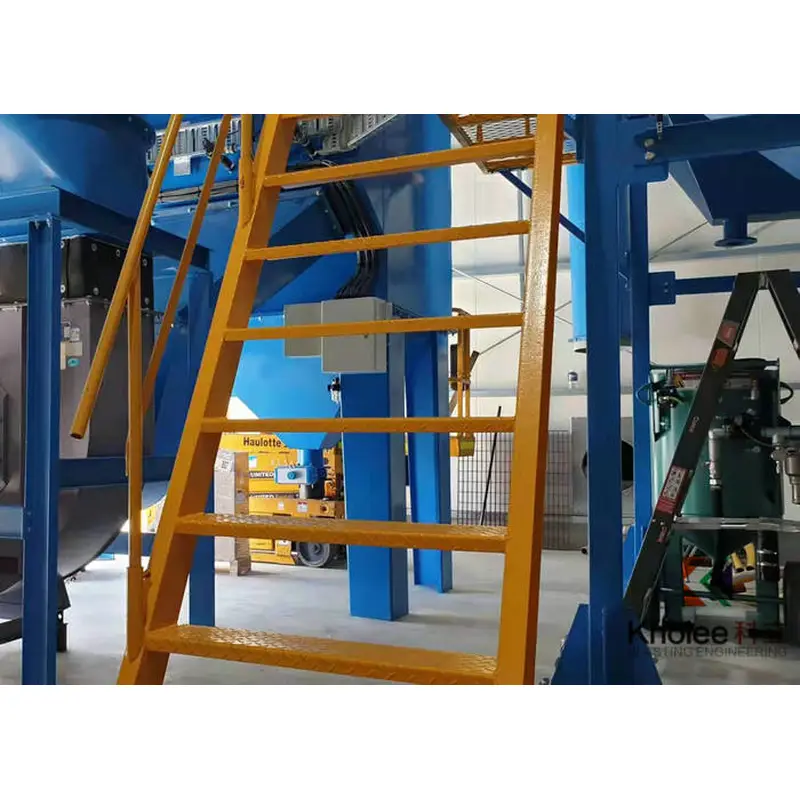

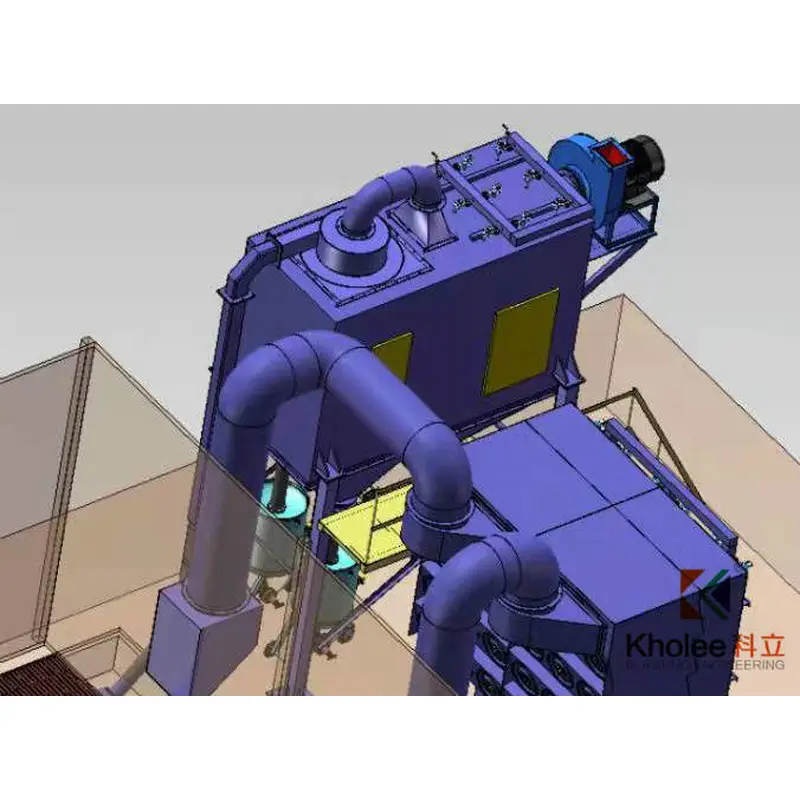

KL-PSF120704WF blast room from Kholee Blast is designed to clean welding structures, profiles, tanks etc. It adopts pneumatic recovery system including waffle floor, cyclone reclaimer & hopper, dust collector system etc. The pneumatic recovery system moves used blasting abrasives from blasting room to reclaimer by high velocity air flow through air ducting.

By blasting, it can remove rust, oxide layers, paint film from workpieces. After blasting, it can get Sa2.5 surface quality and roughness 50~75μm.

Name

Blast Room with Pneumatic Recovery System

Model

KL-PSF120704WF

Size of Blasting Jobs

Max Size

9,000×4,000 ×2,000 mm

Max Weight

~ 5 tons or more

Blasting Room

Door Open Size

5,000×3,500mm

Booth Size L × W × H

12,000×7,000×4,000mm

Abrasive Blasting System

Portable Blast Machine

KL-600S-2

Blast Pot

Φ600mm - 0.27m3

Blasting Nozzle

Φ10mm / 2 pcs

Blasting Productivity

(15~35)m2/hr×2 = 30~70m2/hr

Pneumatic Recovery System

- Single Waffle Floor Recovery System

Manual Sweep

Waffle Floor

L 11500mm - 500×500 Twin, Module Assembly,

1 sets

Recovery Capacity

3 ~ 5 ton/hr

Abrasive Reclaimer

5~10 t/hr

Abrasive Hopper

2.5m3 - 10tons

High Pressure Air Fan

15kw - 4800CMH

Dust Collector for Abrasive Recovery

Pulse Jet Dust Collector

KL-DC-9H

Dust Emission Density

≤30mg/m3

Dust Removing System

For Blasting Room

Dust Collector for Blast Room

Pulse Jet Dust Collector

KL-DC4-48

Filter Cartridge

21m2×48

Centrifugal Air Fan

30kw / 35400CMH

Dust Emission Density

≤30mg/m3

Surface Quality After Blasting

Grade

Sa 2.5 GB8923-88(ISO8501)

Roughness

50µm75µm

Trolley (Work Cart)

Size

4000×2000mm

Loading 5 tons/per or more

Qty

2 sets

Electrical Control System

Electrical Power

380V/415V/50Hz

380V/440V/60Hz

Control

PLC + Manual

Key Electrical Elements

Schneider, CHINT, Mitsubishi PLC etc

Noise Level

≤85dB

Illuminance

≥300Lux

Compressed Air

13.5m3/min, 0.6~0.8Mpa

Total Power

~ 48kw

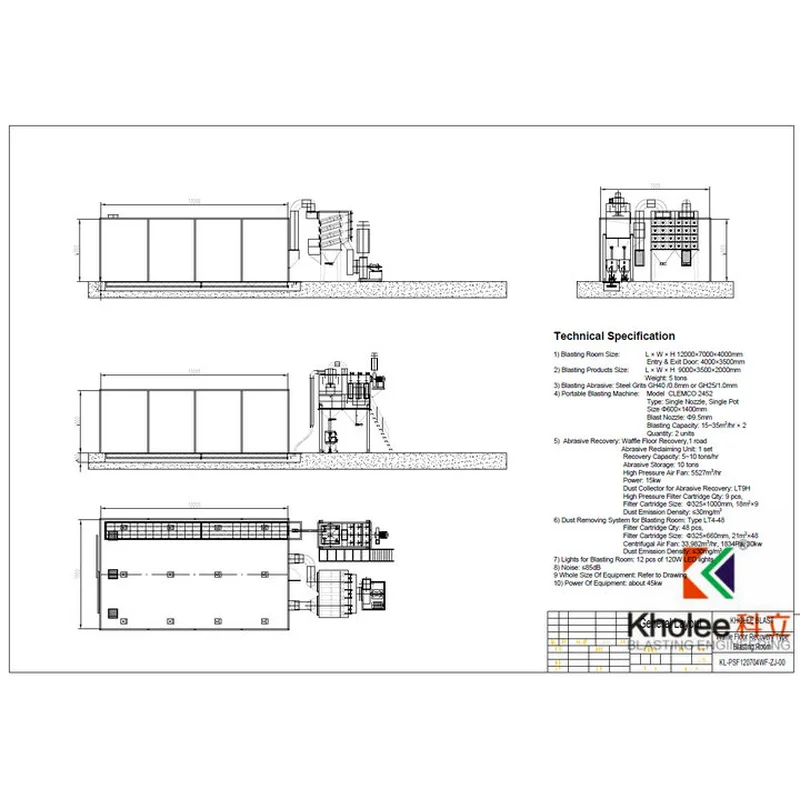

KL-PSF120704WF Blasting Room.jpg
