KL-PSF070504 Blast Room With Mechanic Recovery System

Place Of Origin: China

Working Type: Air Blasting

Blasting Abrasives: Steel Shots, Girts & Garnets

Usage: Remove Rust, Oxide Layers, Painting Film etc

Blasting Room Size: 7×5×4m

Operator: 1 Blasting Man

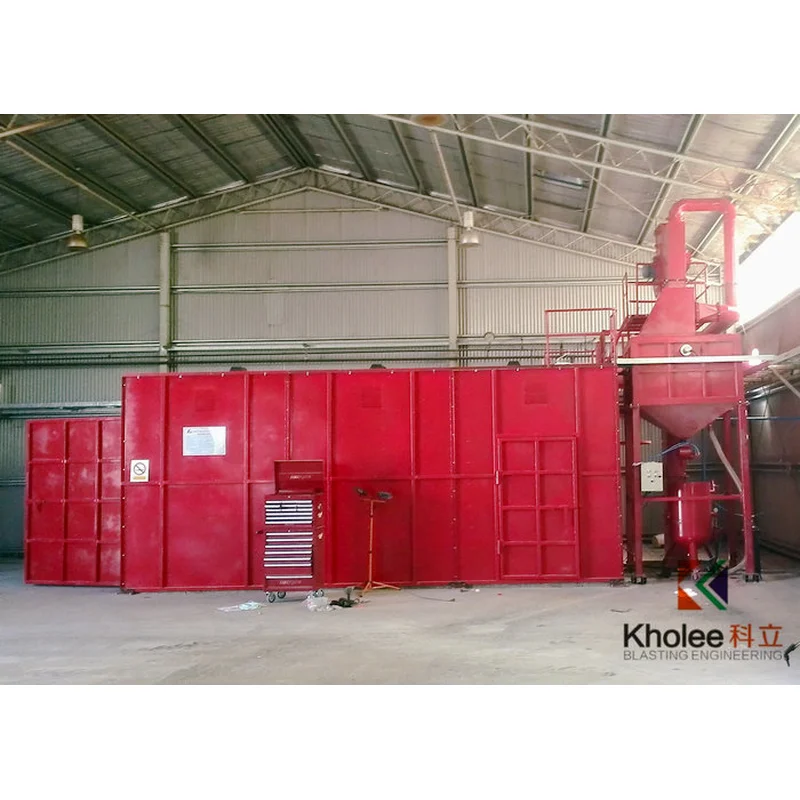

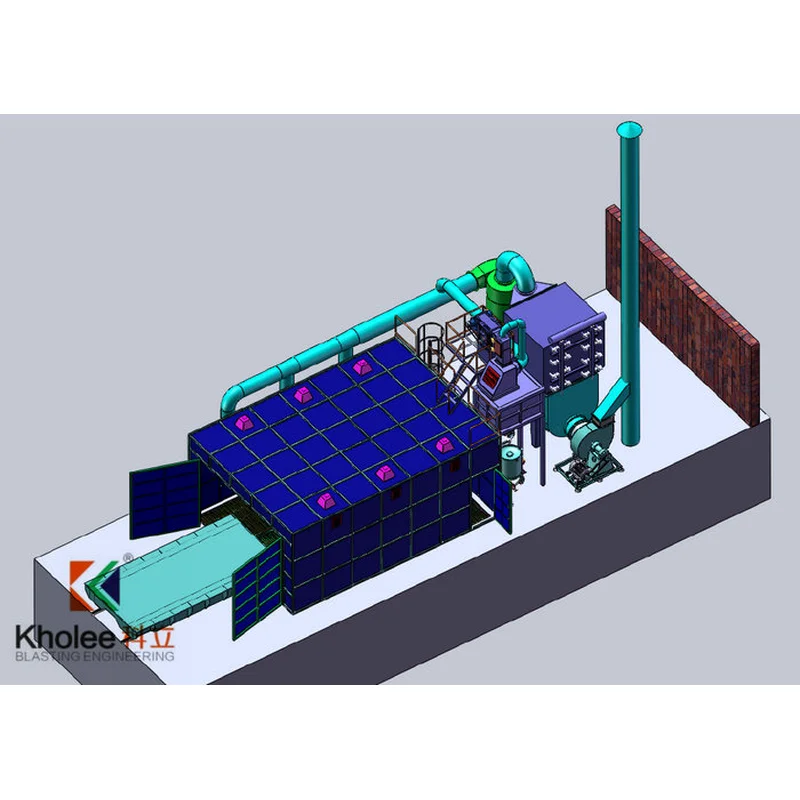

The blast room is comprised of room & wall protective liner, blasting system, abrasive recycle system, ventilation and dust removing system, lighting system, electrical control system etc.

Description

Blast room equipment is used in a wide variety of industries that require surface preparation prior to the application of a protective coating. The surface of the work-piece is cleaned by a mixture of abrasive and high pressure compressed air being directed on to the work piece by blast nozzle.

The blast room is comprised of room structure & wall protective liner, blasting system, abrasive recycle system, ventilation and dust removing system, lighting system, electrical control system etc.

KL-PSF120605 blast room from Kholee Blast is designed to cleaning trailers and semi-trailers of trucks, welding structures, pressure vessels, profiles, pipes etc. It adopts mechanic abrasive recovery system including belt conveyor, bucket elevator, air wash type separator. During blasting, the dust collector system will provide ventilation to ensure the visibility for operators and filter the dust from discharge air.

By blasting, it can remove rust, oxide layers, paint film from workpieces. After blasting, it can get Sa2.5 surface quality and roughness 50~75μm.

Name Blast Room With Mechanic Recovery System
ModelKL-PSF070504

Size of Products

Max Size

4,000×2,500 ×2,000 mm

Max Weight

~ 5 tons or more

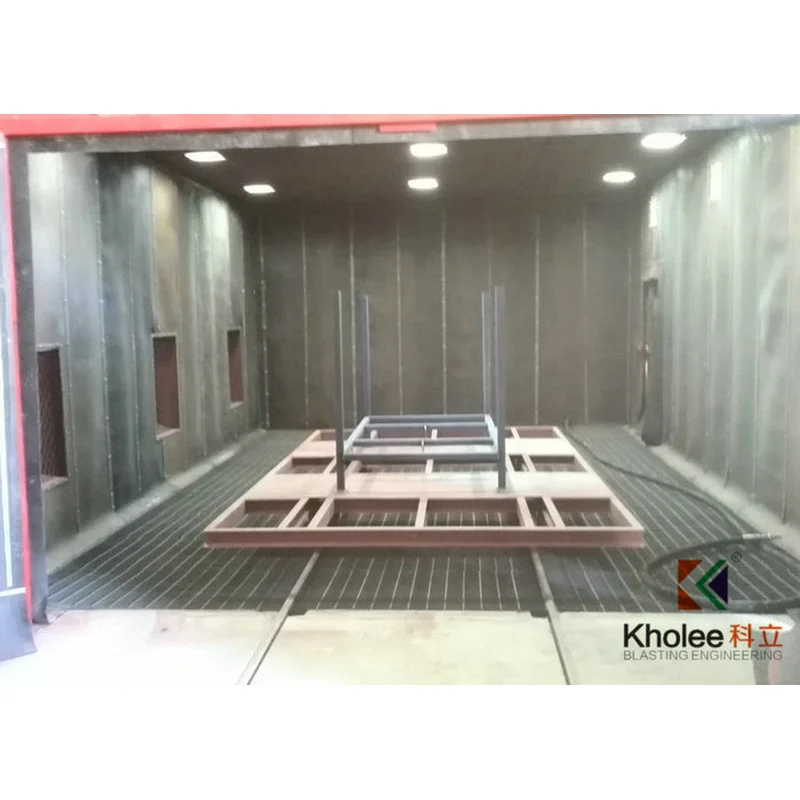

Blasting Room

Door Open Size

4,000×3,000mm

Room Size L × W × H

7,000×5,000×4,000mm

Abrasive Blasting System

Portable Blasting Machine

KL-600S-1

Blasting Nozzle

1 pc

Blasting Productivity

15~35m2/hr×8hr

Abrasive Recycle System

- Full Floor Automatic

Screw Conveyor

3kw - 30 t/hr

Bucket Elevator

4kw - 30 t/hr

Air Wash Type Separator

30 t/hr

Abrasive Storage Tank

2.5m3 - 10tons

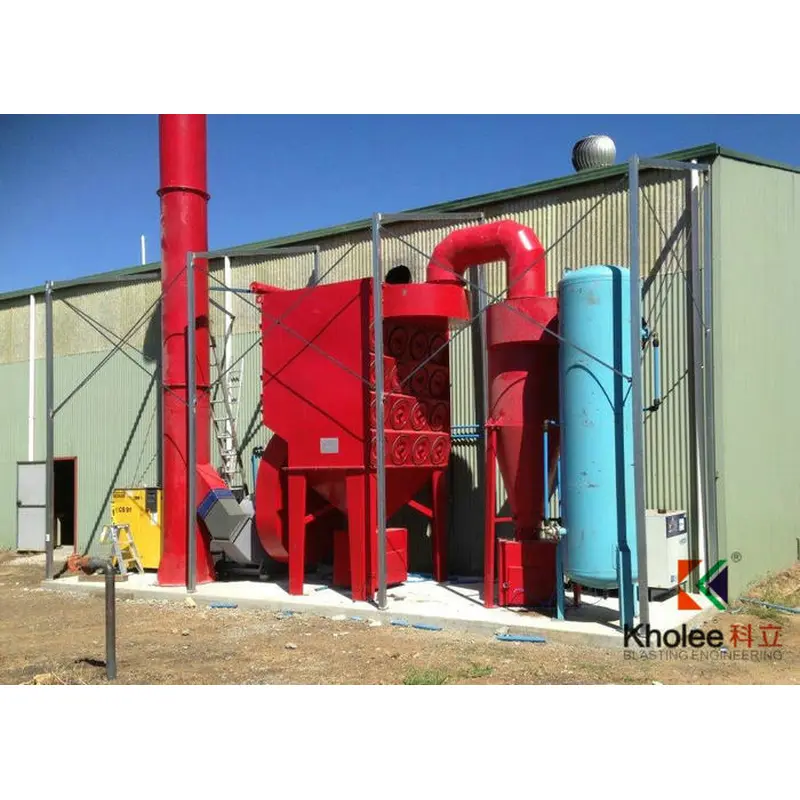

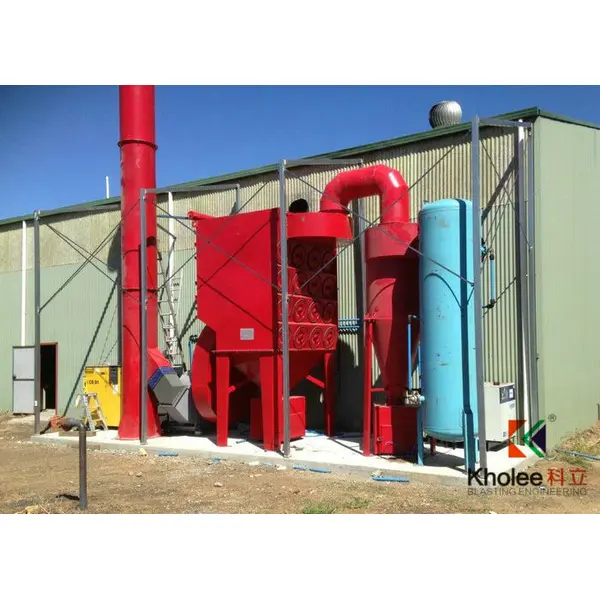

Dust Removing System

Dust Collector

Pulse Jet Dust Collector

KL-DC4-32

Filter Cartridge

21m2×32

Centrifugal Air Fan

22kw / 23500CMH

Dust Emission Density

≤30mg/m3

Surface Quality After Blasting

Grade

Sa 2.5 GB8923-88(ISO8501)

Roughness

50µm75µm

Trolley (Work Cart)

Size

3000×2000mm, 600mm Height

Loading 5 tons/per or more

Qty

1 set

Noise Level

≤85dB

Illuminance

≥300Lux

Compressed Air

6.5m3/min, 0.6~0.8Mpa

Total Power

~ 32kw
