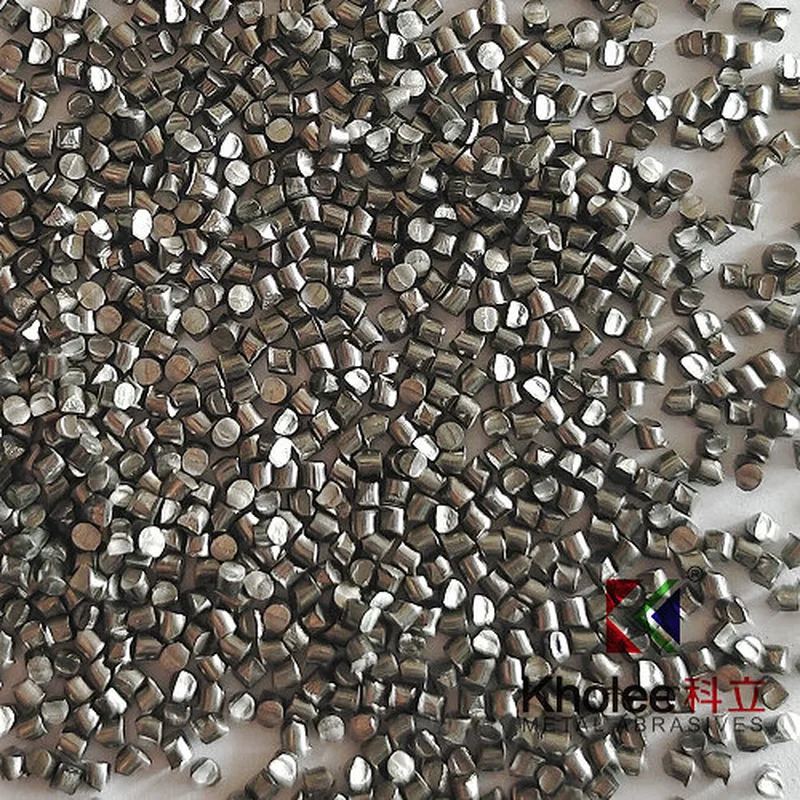

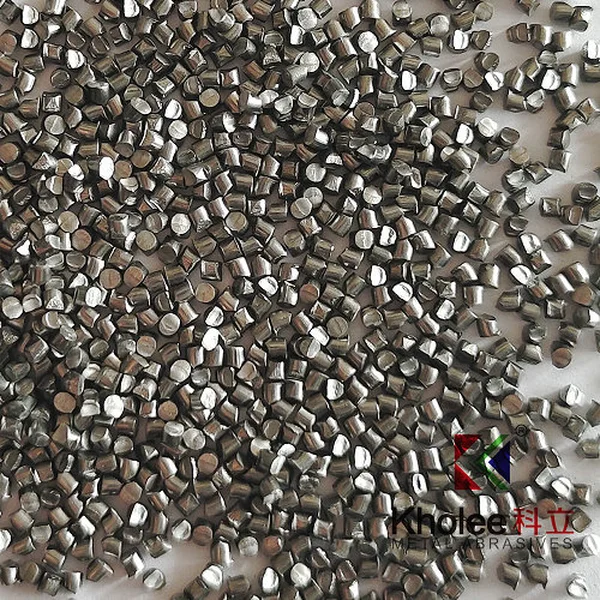

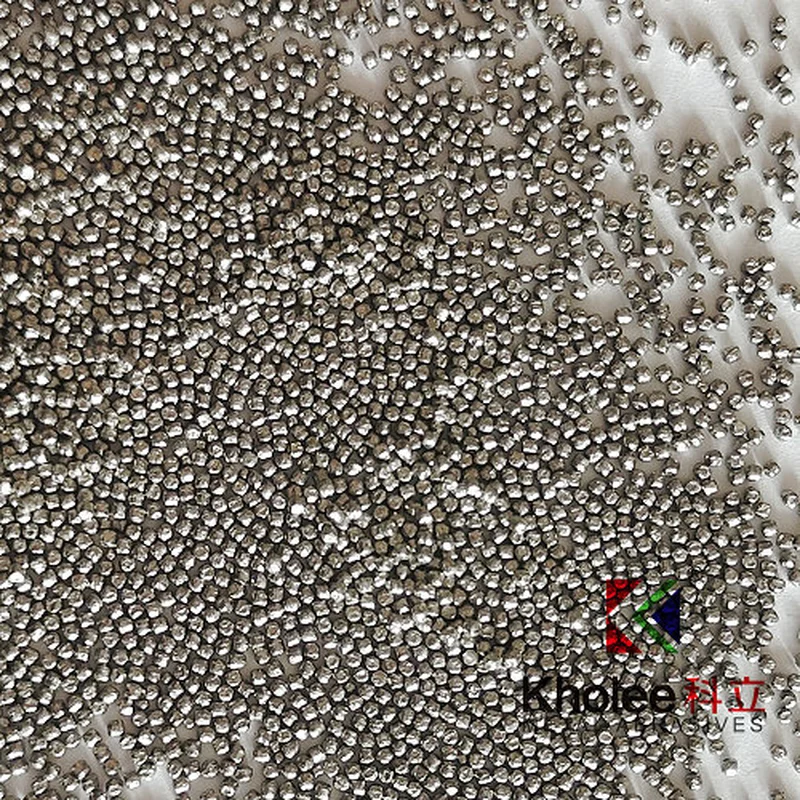

Carbon Steel Cut Wire Shot

Carbon steel cut wire shot is widely used in foundry, forging and automotive industries for cleaning, deburring, descaling, shot peening and surface improvement. Carbon steel cut wire shot is available in three different hardness: 45-50 HRC, 50-55 HRC and 55-60 HRC with size ranging from 0.40mm to 2.50mm. Our cut wire shots conform to SAE J441, AMS 2431 and VDFI 8001.

Description

Carbon steel cut wire shot, is made by cutting carbon steel wires. The carbon steel cut wire shot is available as cut or conditioned. The Carbon steel shot as cut, which is also called for cylindrical cut wire shots, has the shape edges during the cutting process. Carbon steel shots conditioned, which is also called for Spherical conditioned carbon steel cut wire shots, is made by carbon steel wire after cutting and conditioning process. During the process, we can obtained several conditioned forms G1 (normal conditioned), G2 (double conditioned) and G3 (special conditioned), where G3 is the perfect rounded particle.

Carbon steel cut wire shot is widely used in foundry, forging and automotive industries for cleaning, deburring, descaling, shot peening and surface improvement.

Carbon steel cut wire shots are available in different hardness: HV400-500, HV500-555 , HV555-605, HV610-670, HV670-740 HRC with size ranging from 0.3mm to 2.50mm. Our cut wire shots conform to SAE J441, AMS 2431 and VDFI 8001.

Property of Carbon Steel Cut Wire Shot

Chemical Composition



C =0.45-0.85%     Si=0.10-0.30%         Mn=0.40-1.2%        S≤0.04%       P≤0.04%



Standard

Available Sizes

Confirm to VDFI 8001/ 2009/

SAE J441 /

AMS2431

Grain number — Size in mm

0.3mm / 0.4mm / 0.5mm / 0.6mm / 0.7mm / 0.8mm

/ 1.0mm / 1.2mm / 1.4mm / 1.6mm/ 2.0mm / 2.5mm

Other grades are available on request

Shape

Average Hardness

 As Cut: cylindrical

 CCW / G1 Conditioned: corners pre-rounded

 DCCW / G2 Conditioned: semi-rounded

 SCCW / G3 Conditioned: perfect rounded

HV400-500, HV500-555

HV555-605, HV610-670

HV670-740

Recycle Times

Metallurgical Microstructure



3500 ~ 9600 cycles



Tempered Martensite

Density

Package



≥ 7.8 g/cm3



 25 kg bags on pallet up to 1 ton

 1 ton loose in big bag
