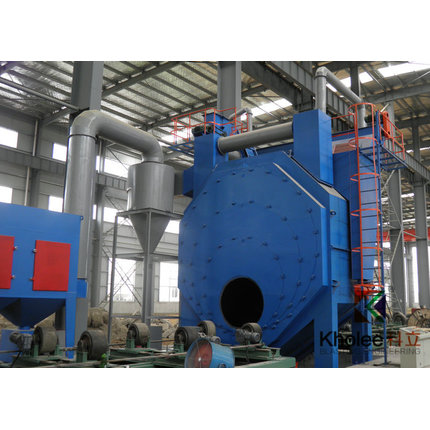

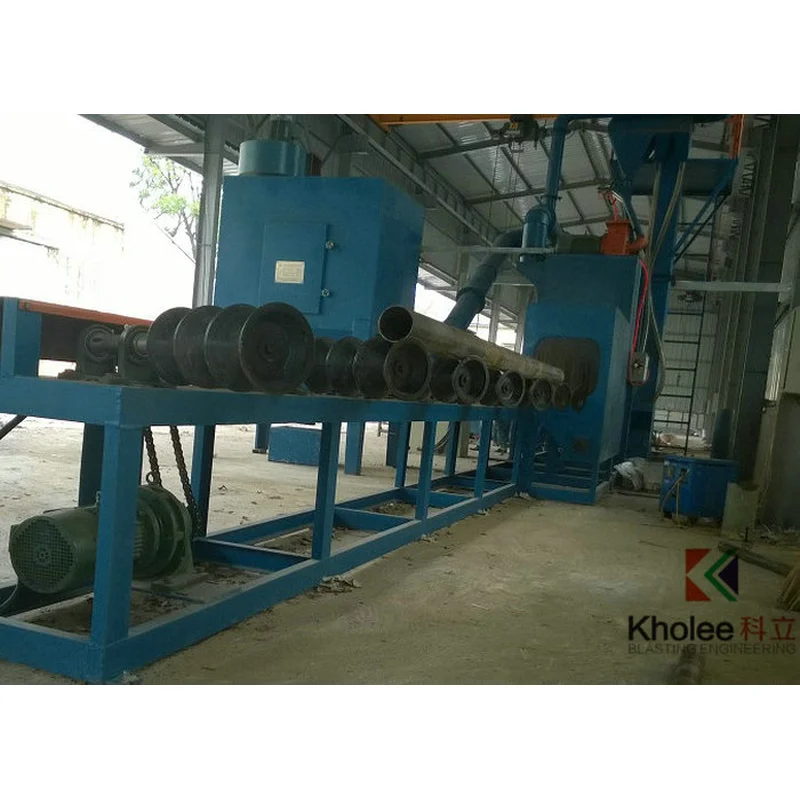

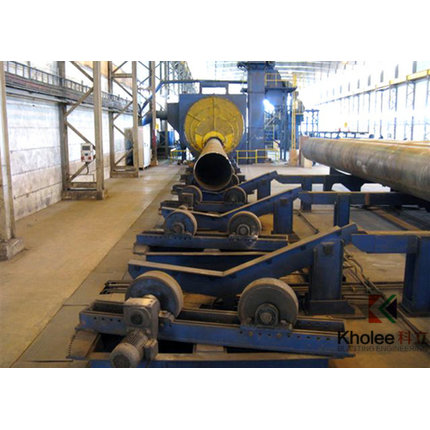

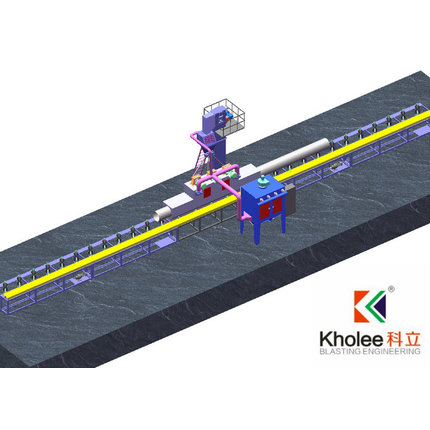

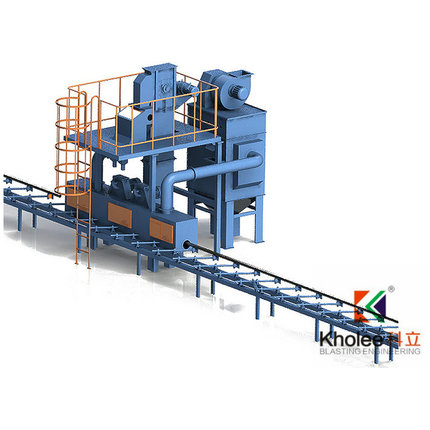

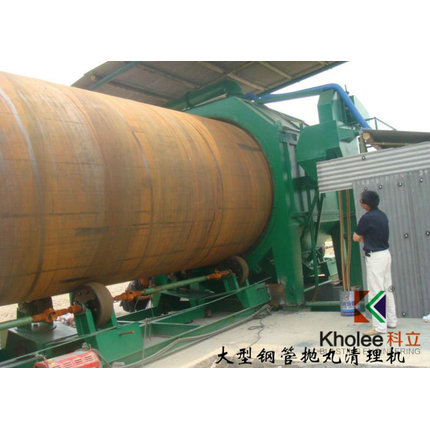

Steel pipe shot blasting machine is used to clean external surface of steel pipe, round bar, drilling rod etc. It can clean rust, oxide layers, paint film and intensify. The equipment adopts V conveying roller system or rubber wheel to delivery steel pipe. When steel pipe moves forward on conveyor, it will rotate at the same time. When steel pipe passes through blasting area, the high speed of steel shots will hit the surface of steel tube and do blasting. The equipment is widely used in petroleum oil & gas, steel pipe stockholders, chemical, grid engineering and boiler etc.
Name | Steel Pipe Shot Blasting Machine | |||
Model | KLGP310-2E | KLGP300-2 | KLGP450-3 | KLGP600-3 |
Steel Pipe Size Diameter × Length | Φ310 × 6000 mm | Φ300 × 6000 mm | Φ450 × 9000 mm | Φ600 × 9000 mm |
Pipe Qty | 1 ~ 3 pcs | 1 pc | 1 pc | 1 pc |
Working Speed | 1.0~3.0m/min | |||
Blasting Wheel | 250kg/min×2 15kw×2 | 200kg/min×2 11kw×2 | 200kg/min×3 11kw×3 | 250kg/min×3 15kw×3 |
Abrasive Recycle Capacity | 30t/hr | 24t/hr | 36t/hr | 45t/hr |
Dust Removing Air Flow | 9600m3/hr | 9600m3/hr | 12500m3/hr | 12500m3/hr |
Surface Quality After Blasting | Sa 2.5 GB8923-88(ISO8501) | |||
Roughness After Blasting | Ra20~75 | |||
Dust Emission Density | ≤30mg/m3 | |||
Size of Equipment | Refer to Drawing | |||
Noise Level | ≤85dB | |||
Total Power | 47.5kw | 39.5kw | 54kw | 68.5kw |
Name | Steel Pipe Shot Blasting Machine | |||
Model | KLGP1220-2 | KLGP2000-2 | KLGP2800-2 | KLGP4000 |
Steel Pipe Size Diameter × Length | Φ1200×12000mm | Φ2000×12000mm | Φ2800×12000mm | Φ4000×12000mm |
Working Speed | 1.0~3.0m/min | |||
Blasting Wheel | 250kg/min×2 15kw×2 | 300kg/min×2 18.5kw×2 | 350kg/min×2 22kw×2 | 720kg/min×2 45kw×2 |
Abrasive Recycle Capacity | 30t/hr | 36t/hr | 45t/hr | 90t/hr |
Dust Removing Air Flow | 12500m3/hr | 16800m3/hr | 21600m3/hr | 25600m3/hr |
Surface Quality After Blasting | Sa 2.5 GB8923-88(ISO8501) | |||
Roughness After Blasting | Ra20~75 | |||
Dust Emission Density | ≤30mg/m3 | |||
Size of Equipment | Refer to Drawing | |||
Noise Level | ≤85dB | |||
Total Power | 59kw | 73kw | 86kw | 148kw |
