Kholee Blast offers a wide range of portable abrasive blast machine and accessories to cope with virtually all types of blasting environment and all the features that the professional user requires. With a guarantee fast filling, unrestricted airflow, easy access for inspection and maintenance design, our high production machines are manufactured to cover all possible requirements of the industry.
A choice of automatic or manually operated machines is available along with a grit valve, the single piece remote control deadman system and a silencer giving reduced labour cost, high efficiency of abrasive, performance and operator safety.
Kholee Blast equipment offers these unique features:
- Construction heavy gauge construed pressure vessel fabrication tested to 12 bar with a working pressure of 10 bar.
- Piping on all machines are 1/2” Or 1-1/4”, with long life rubber lined parts fitted where necessary.
- Pop-up valve heavy duty to give quick response to pressurization.
- Concave head and conical bottom allows easy of filling and easy flow of all types of abrasive.
- Inspection door quick release for easy of inspection and servicing.
- Abrasive valves full range including flat valve, metering valve, Thompson valve.
- Mobility all machines mounted on large rugged wheels for easy maneuverability on site.
- Sieves and covers rugged well designed with handles and optional bag spliter.

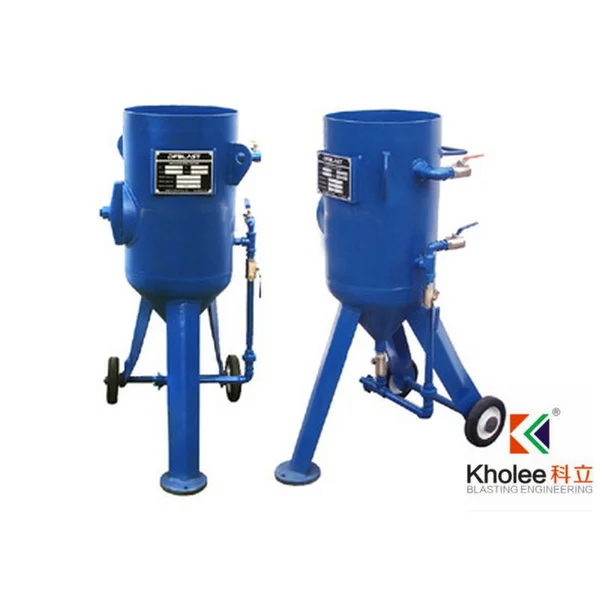

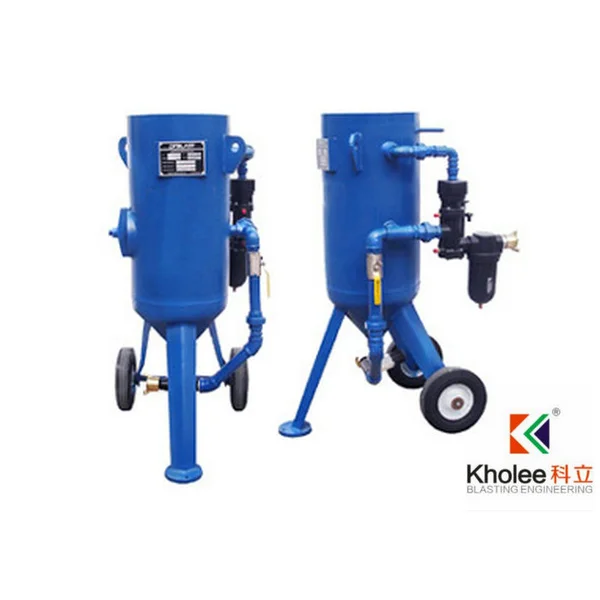

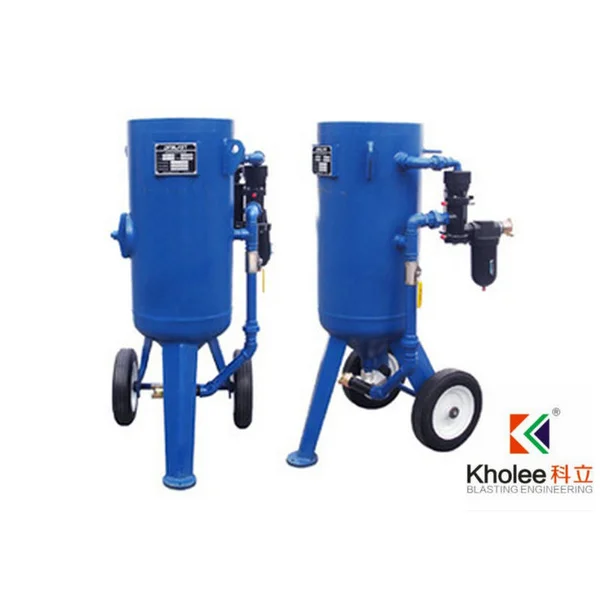

Portable Abrasive Blast Machines
|
Model
| Capacity
| Working Pressure
| Dimension Dia×Height
| Piping
| Weight
|
KLSC50-1
| 20 L
| 8 Bar
| Φ273×745mm | 1/2"
| 57 kgs
|
KLSC100-1
| 60 L
| 10 Bar | Φ350×1140mm | 1-1/4"
| 78 kgs |
KLSC300-1
| 100 L
| 10 Bar | Φ400×1300mm | 1-1/4" | 108 kgs |
KLSC400-1
| 150 L
| 10 Bar | Φ500×1400mm | 1-1/4" | 132 kgs |
KLSC600-1
| 200 L
| 10 Bar | Φ620×1333mm | 1-1/4" | 201 kgs |
KLDC800-DO
| 300 L
| 10 Bar | Φ620×1600mm | 1-1/4" | 245 kgs |
Further Information
- High performance abrasive blasting of metal constructions and buildings, bridges, reservoirs, piping, concrete surfaces.
- Pneumatic remote control enables the system to be de-activated in seconds from the nozzle.
- Easily serviceable operational components minimizes down time.
- Large top inspection port provides quick pop-up change over and no need to battle with internal pipe work.
- Large urethane pop-up valve provides fast pressurization and allows quick abrasive loading.
Model
| KLSC50-1
| KLSC100-1
| KLSC300-1
| KLSC400-1
| KLSC600-1
| KLDC800-DO
|
Pot Dia.
| 273mm
| 350mm
| 400mm
| 500mm
| 620mm
| 620mm
|
Equipment Height
| 745mm | 1140mm
| 1300mm
| 1400mm
| 1333mm
| 1600mm
|
Equipment Weight
| 57kgs
| 78kgs
| 108kgs
| 132kgs
| 201kgs
| 245kgs
|
Pot Volume
| 20L
| 60L
| 100L
| 150L
| 200L
| 300L
|
Wheel Dia.
| 150mm
| 150mm
| 340mm
| 340mm
| 400mm
| 400mm
|
Safe Work Pressure
| 860KN/SQM (125PSI)
|
Hydraulic Test Pressure
| 1300KN/SQM (174PSI)
|
Standard
| China Standard GB150
|
Blast System Accessories
Fitted with deadman remote control system, moisture separator, abrasive metering valve, screen, cover, nozzle, helmet, airline filter, 20m remote control twin line rubber hose, 20m or 40m blast hose with coupling and nozzle holder, 20m helmet breathing air hose, blast suit and the pair of leather/cotton blasting gloves.
