There are many methods of removing casting shell, insulation and sand from casting products including impact, water-jetting, shake, shot blasting etc. Shot blasting is a surface treatment process using high velocity metal abrasives to impact the surface of metal products, which can obtain excellent cleaning and surface preparation.

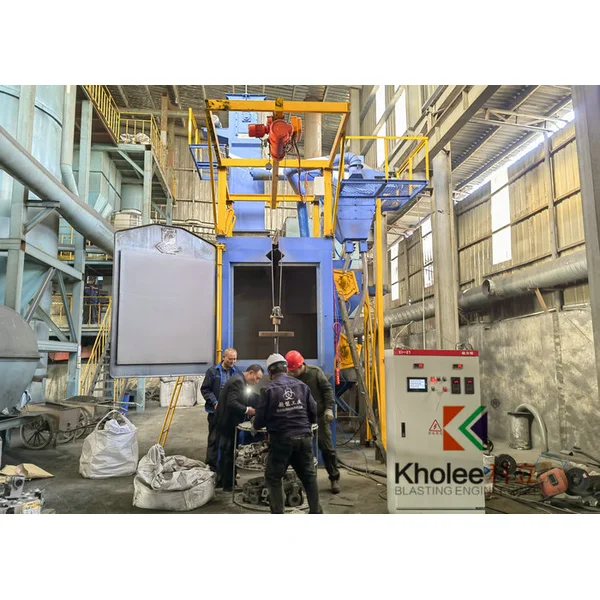

Shot Blasting Machine for casting shell removal includes shot blasting chamber, blast wheel (high velocity type), work-piece lifting system, screw conveyor, bucket elevator, magnetic separator, air wash separator, dust collector, Raymond mill breaker, vibrating Screen Separator & electrical control system.
Shot Blasting Used for Casting Shell Removal in investment casting, precision casting, sand casting, lost wax casting, lost foam casting
● Remove Sand from Casting
● Remove Casting Shell & Insulation from casting
● Prepare Surface for coating, cutting, maching etc
In general, shot blasting concentrates metal abrasive at high speed (80~110m/s) at the surface of casting thereby remove casting shell due to the metal abrasives strong impact.
System features & benefits by shot blasting for casting shell removal from Kholee Blast
● Shorten Work Process Flow: no need manual shell removal or shakeout
● Reduce Loss of steel shots
● Reduce Labor Cost for Cast Shell Removal
● Save Electrical Energy
● Reduce repair cost compared with traditional shot blast m/c
● Reduce blast cleaning time & improve productivity
● Save Operation Cost & improve production profits: compared with traditional work process flow, the shot blasting machine from Kholee Blast special for casting shell removal will save operation cost. All cost related to new technology of blasting from Kholee Blast will be around USD100,000.00~ USD120,000.00 based on casting production 15tons/day. (When labor cost and material cost are different, the result will be different).
Size of Blasting Jobs | Max Siz | Φ1,150× H1,350 m |
Max Weight | 1,000KG |
| Blasting Chamber | Size |
1,600×1,600×1,900mm |
Leg Heigh | 1,550mm |
The whole blasting chamber is made Mn13 steel plate bending and welding together, blasting hot spot area is protected by Cr18 wearing resistance plate liner again, hardness ≥65HRC. |
Time Needed For Casting Shell Removal | Investment /Lost Wax casting | 10~15 min |
| Sand Casting | 3~5 min |
Lost Foam Casting | 6~10 min |
Automatic Entry & Exit Door | Equipped With Pneumatic Cylinder & Protected by Mn13 steel plate liner |
Blasting Wheel - Direct Coupling | Model | KL-CN18 |
Shot blasting capacity | 250 kg/min ×2 |
Powe | 15kw ×2 |
Blade Service Life | 2 years / 2000 working hours |
| 'Y’ trail Spinner Hanger Lifting System | Trail type | ‘Y’ trail |
Hoist quantity | 2 pcs |
Loading capacity | 1000 kg |
Self-Rotating power | 0.55kw |
Vibrating Conveyor For big shell separating | Delivery capacity | 30 t/h |
Power | 0.55kw ×2 |
| Bucket Elevator - With checking device | Lifting capacity | 30 t/h ×1 |
Powe | 4 kw |
Abrasive - Shell Separator Magnetic + Air Wash Type | Separating capacity | 30 t/h |
Function | Separating shell powder and metal abrasive completely |
Rotary Magnetic | 2.2kw×2 |
Air speed in air washing area | 4~5 m/s |
| Bag Filter Dust Collector - Online Pulse Jet Cleaning | Model | KLCN-DC-96BF |
Bag Filter | Φ130 × 1500mm |
Bag Filter Quantity | 96 pcs |
Air Volume | 12,600 m3/hr |
Centrifugal Air Fan | 11 kw |
| Vibrating Conveyor For Separating Different Size of Powder | Power | 0.55kw × 2 |
| Shell Powder Size | < 60 # |
30~60 # |
16~30 # |
>16 # |
Powder Shell Storage | 4 Boxes |
Qty | 1 Set |
Electrical Control System | Voltage/Frequency | 380V/50Hz/3Ph |
Operation Type | Auto PLC + Manual control |
Total Power | ~ 56kw |
Overall Size of Machine | 6500mm×6500mm×7500mm |
Note:
- Kholee Blast also designs and manufactures non-standard casting shell removal shot blasting machine according to clients’ requirements and work-pieces size.
- We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior Notice.
