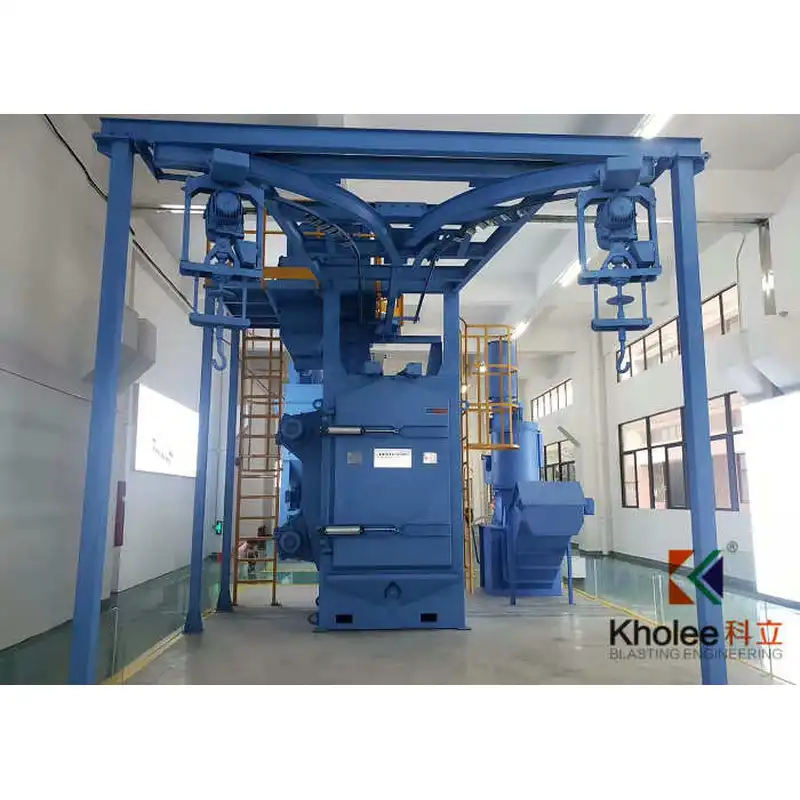

KL-H2D1T0815 Spinner Hanger Shot Blasting Machine | Kholee Blast

KL-H2D1T0815 spinner hanger shot blasting machine

Place Of Origin: China

Working Type: Wheel Blasting

Blasting Abrasive:Steel Shots

Usage: To remove sand, oxide layers, welding slag and paint films

Spinner hanger shot blasting machine is mostly used for blast cleaning, desanding and decoring in die cast industry as well for descaling, derusting and reconditioning in metalworking industry.


Description

KL-H2D1T0815 Spinner hanger shot blasting machines are among the most flexible types of blasting equipment, available semi automatic or fully automatic. It is typically designed to handle mixed loads of medium and large components which often include fragile and sensitive parts that cannot be tumbled in bulk loads. The workpieces are suspended on hangers and carried into blasting chamber.

The Shot Blasting Machine from KHOLEE BLAST is ideal for heavy and complex shaped workpieces like: casts, welded constructions, forged and pressed parts, remodeled cold or hot and of various complicated forms, steel cylinders, springs, etc.

Equipment Name

Spinner Hanger Shot Blasting Machine - Cleaning Die Casting,

Forgings, Welding Structures

Model

KL-H2D1T0815

Products Size

Diameter × Height

Φ800×1500mm

Size of Blasting Chamber

1700×1700×3000mm

Hanger Quantity

2 pcs

Hanger Loading Capacity

1 ton

Blasting Wheel

200kg/min×2

11kw×2

Abrasive Recycle Capacity

24t/hr

Dust Removing Air Flow

9800m3/hr

Surface Quality After Blasting

Sa 2.5  GB8923-88(ISO8501)

Roughness After Blasting

Ra20~75

Dust Emission Density

≤30mg/m3

Size of Equipment

Refer to Drawing

Noise Level

≤85dB

Total Power

42kw
