The
conventional method of recovering spent abrasives is both labor
intensive and time consuming, while the fastest and most cost-effective
method of cleaning up spent abrasives is by vacuuming recovery.

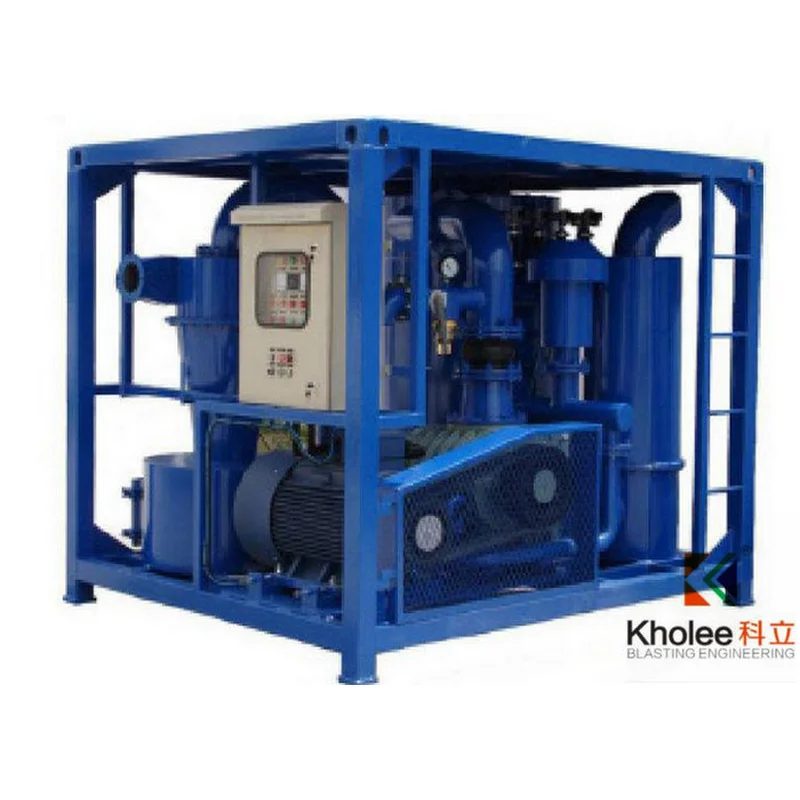

Working Principle
Vacuum
recovery system is designed to recover spent recyclable abrasives from a
blasting area into a silo for subsequent return to the blast cleaning
equipment or, in the case of expendable abrasives, for disposal into a
waste hopper. After depositing the abrasive into the silo, the vacuum
flow containing air and dust continues on to the suction unit, where the
dust particles in this stream are removed by high performance filter
cartridges prior to exhausting air to atmosphere.
Standard Safety Features
-
System automatically shuts-off to prevent damage to the vacuum producer
when the suction hose is choked up with abrasives and when the electric
motor’s current rises above a certain pre-determined value.
-
Cyclone is equipped with full-tank sensor to shut down the vacuum
machine when it is full and prevent overloading of abrasives in the dust
collector. Silo full-tank sensor available as an option.
- An emergency ‘STOP’ button, when depressed, will automatically cut off all electrical supply.
Application
To
recovery steel shots, grits and garnet after blasting and widely used
in the industry of shipbuilding, ship repair, big tank internal blasting
etc.
ABRASIVE VACUUM RECOVERY MACHINE |
Model | KL-VR-37 | KL-VR-45 |
KL-VR-75 |
Electrical Power | 380V/415V/440V, 50Hz/60Hz, 3Ph |
Electrical Motor IP55, Class F | 37kw Star Delta | 45kw Star Delta | 75kw Star Delta |
Air Flow | 38m3/min @-450mmHg | 44m3/min @-450mmHg | 52m3/min @-450mmHg |
Max Vacuum Degree | -0.0667Mpa Over vacuum protection by vacuum relief valve |
Vacuum Pump | KFM Korea | ANLET Japan |
Dust Collector | PLC control Pulse Jet Clean Type Dust Collector Periodical Air Reverse Jet |
Compressed air | 0.6~0.8Mpa, 1.0m3/min |
Dust Emission Density | ≤15mg/m3 |
Electrical Control | Schneider & Mitsubishi PLC, IP54 Protection: Phase Stage | Over & Low Voltage | Overloading | Wrong Phase | Dust Level etc. |
Noise Level | ≤85dB(A) @ Radius 5m |
Equipment Size | 2.2×1.7×2.15mtr. | 2.2×2.0×2.15mtr. | 2.9×2.2×2.45mtr. |
Grit hose Size | 3” | 4” | 4”,5” |

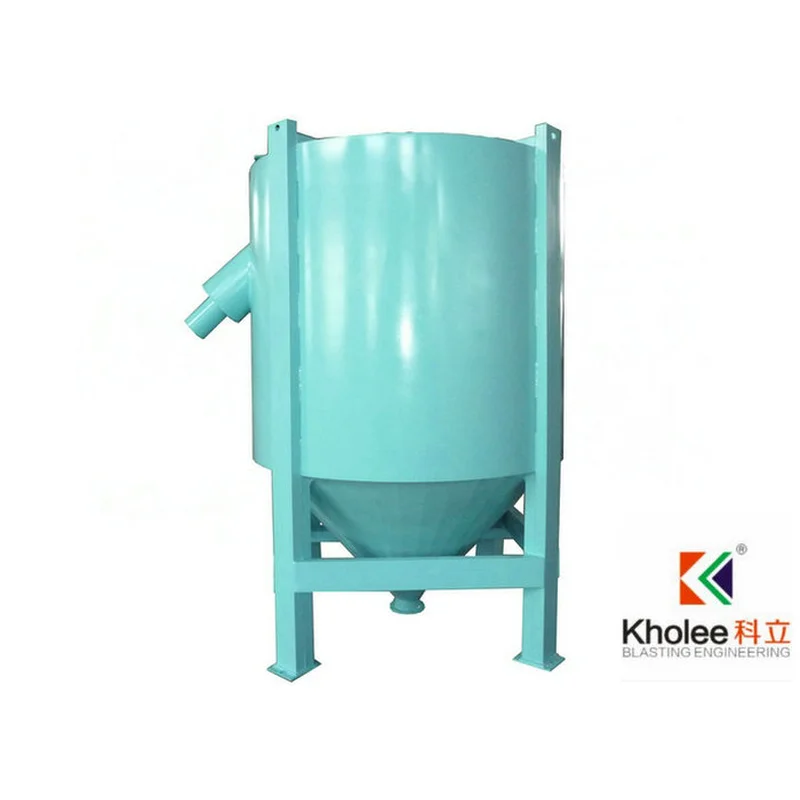

Shots silo | 5 tons | 5 tons | 8 tons |
Abrasive Recovery Capacity | 2~4 t/hr 20m vertical suction, 15m horizontal Machine to silo | 3~5 t/hr 30m vertical suction, 15m horizontal Machine to silo | 5~8 t/hr 30m vertical suction, 15m horizontal Machine to silo |
Standard Supply Scope
of Equipment | - Vacuum Recovery Machine, 1 unit - Abrasive Storage Silo,1 unit - Vacuum Hose - Shots Suction Hose - Dust Suction Hose - Floor Suction Tool |
ABRASIVE VACUUM RECOVERY MACHINE |
Model | KL-VR-90 | KL-VR-110 |
KL-VR-132 |
Electrical Power | 380V/415V/440V, 50Hz/60Hz, 3Ph |
Electrical Motor IP55, Class F | 90kw Star Delta | 110kw Star Delta | 132kw Star Delta |
Air Flow |
60m3/min @-450mmHg |
70m3/min @-450mmHg |
80m3/min @-450mmHg |
Max Vacuum Degree | -0.0667Mpa Over vacuum protection by vacuum relief valve |
Vacuum Pump | KFM Korea | ANLET Japan |
Dust Collector | PLC control Pulse Jet Clean Type Dust Collector Periodical Air Reverse Jet |
Compressed air | 0.6~0.8Mpa, 1.0m3/min |
Dust Emission Density | ≤15mg/m3 |
Electrical Control | Schneider & Mitsubishi PLC, IP54 Protection: Phase Stage | Over & Low Voltage | Overloading | Wrong Phase | Dust Level etc. |
Noise Level | ≤85dB(A) @ Radius 5m |
Equipment Size |
2.9×2.2×2.45mtr. |
3.2×2.3×2.6mtr. |
3.2×2.3×2.6mtr. |
Grit hose Size |
4”, 5”,6” |
4”, 5”,6” |
4”, 5”, 6” |
Shots silo |
8 tons | 10 tons
| 10 tons |
Abrasive Recovery Capacity |
6~9t/hr 40m vertical suction, 15m horizontal Machine to silo |
7~12 t/hr 60m vertical suction, 15m horizontal Machine to silo |
8~15 t/hr 60m vertical suction, 15m horizontal Machine to silo |
Standard Supply Scope
of Equipment | - Vacuum Recovery Machine, 1 unit - Abrasive Storage Silo,1 unit - Vacuum Hose - Shots Suction Hose - Dust Suction Hose - Floor Suction Tool |
