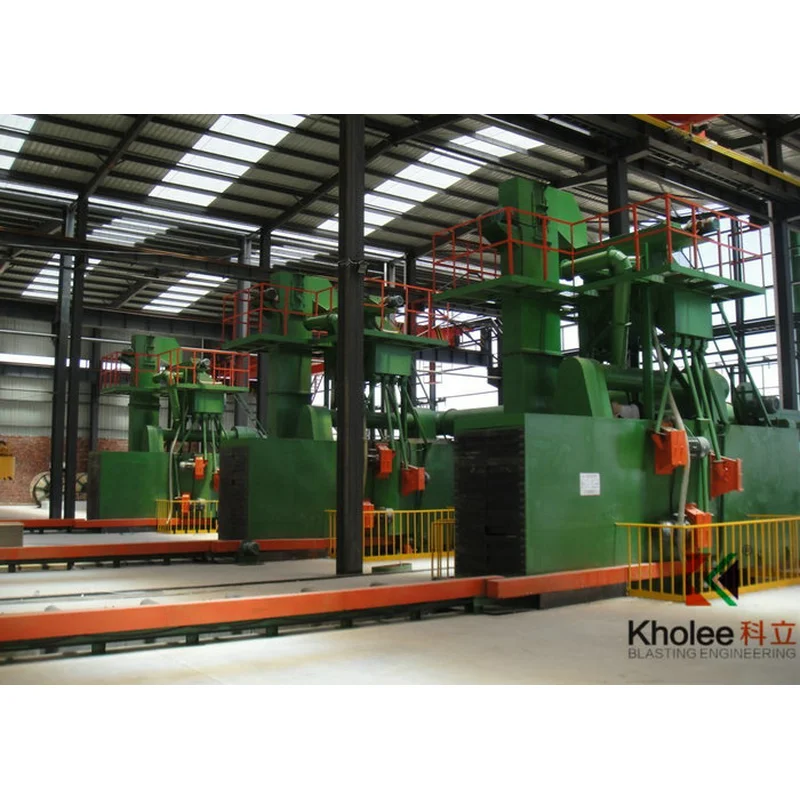

Máquina de jateamento de esteira rolante klh0816-8 para limpeza de viga h

Máquina de jateamento de esteira rolante klh0816-8 para limpeza de viga h

Lugar de origem: China

Tipo de Trabalho: Wheelblast

Abrasivo de jateamento: Granalhas de aço e granalhas de aço

Aplicação: Remover ferrugem, camada de oixde, película de tinta, escória de soldagem, etc.

وصف

KLH0816-8 roller conveyor shot blasting machine is used to clean H beam, box beam, big steel structure, pipe, steel plate etc. in PEB structure manufacturing workshop. It adopts advanced blasting turbine to do blasting to all the surface of steel and remove rust, oxide layers, welding slag. After blasting, it gets clean surface Sa2.5 with certain roughness which improves the paint film adhesion, anti-fatigue and anti-corrosion, prolong the service life of steel. It is widely used in the industry of steel structure, ship building, engineering machinery & bridge construction etc.

The equipment is comprised of in-feeding roller conveyor, shot blasting chamber, blasting turbine, shots recycle system, dust removing system, out-feeding roller conveyor and electrical control system etc.

Size of Blasting Jobs

Max Size

H Beam

800×1,600×12,000mm

Weight

10,000kgs

Blasting Chamber

Open Size

1,000×1,800mm

Chamber Length

7,400mm

Main blasting chamber is protected

By Cr13 Wearing Resistance Plate Liner

service life: opposite blast wheel ≥ 4,000hrs

Other Parts ≥ 10,000hrs

Working Speed

0.5~2.5 m/min

Blasting Wheel

- Direct Coupling

Model

KLQ350D

Quantity

8 sets

Rotating speed

2930rmp

Shot blasting capacity

200 kg/min ×8

Power

11kw × 8

In-feeding & Out-feeding

Roller Conveyor

Loading Capacity

1000 kg/m

Space Between Rollers

1000mm

Length

12m × 2

Power

2.2kw×2

Abrasive Recycle System

Recycle Capacity

96 t/hr

Quantity

1 set

Pulse Jet Type

Dust Collector

Model

KL-DC-15

Cartridge Filter

Φ325 × 1100mm

Cartridge Filter Quantity

15 pcs

Dust Emission Density

≤80 mg/m3

Air Volume

21,600 m3/hr

Centrifugal Air Fan

18.5kw

Quantity

1 Set

Electrical Control System

Voltage/Frequency

380V/50Hz/3Ph

Operation Type

Manual + PLC control

Equipped with China Famous Brand Elements Such as CHINT

Mitsubishi

PLC, breaker, contactor, time relay, thermal relay, button, switch etc.

Interlock safety control

Total Power

About 128kw

Overall Size of Machine

About L 31,400× W 6,000× H 6,600mm
